SR74|SR75 绝对值磁尺

SR74|SR75 绝对值磁尺
产品名称:SR74|SR75 绝对值磁尺
所属类别:磁栅尺|磁尺
产品人气:2996
更新日期:2015/6/18 22:22:37
询价

产品介绍

简单介绍:

     绝对值磁性尺SR74/SR75:为工作机械所开发的最适合用在精密平台定位的磁尺,输出信号为增量式A/B相/原点差动信号(符合EIA-422)及增量式串列双方向信号(符合EIA-485);适用工控系统:FANUC、三菱电机、松下性:

产品特性:

适合应用于精密平台定位
  薄型增量型磁尺
  该系列磁性尺是永久磁性记录组成,所以即使暴露在冷却液下,也可以不受其影响,能保持读取能力。且因该系列尺与本体以铁制成,故温度膨胀系数与机台相同,精密度不易失真,且抗振动与冲击。



      SR74  SR75 多原点磁尺:为工作机械所开发的最适合用在精密平台定位的磁尺,输出信号为增量式A/B相/原点差动信号(符合EIA-422)及增量式串列双方向信号(符合EIA-485);精度(3+3ML/1000)μm,测量长度:70-2040mm,分辨率0.01µm,响应速度:200m/min,适用工控系统:FANUC、三菱电机、松下






技术参数:
ModelSR74SR75
Measuring length (ML)70~2040mm
70, 120, 170, 220, 270, 320, 370, 420, 470, 520, 570, 620, 720, 770, 820, 920,
1020, 1140, 1240, 1340, 1440, 1540, 1640, 1740, 1840, 2040
70~2040mm
70, 120, 170, 220, 270, 320, 370, 420, 470, 520, 570, 620, 720, 770, 820, 920,
1020, 1140, 1240, 1340, 1440, 1540, 1640, 1740, 1840, 2040
Thermal expansion coefficient (/ °C)12 ± 1 x 10-6/ °C12 ± 1 x 10-6/ °C
Output signalA/B, Reference point line driver signal
(compliant with EIA-422)
Incremental serial bidirectional signal,
compliant with EIA-485
Accuracy (at 20 °C) ML:mm3+3ML/1,000 μm p-p or 5+5ML/1,000 μm p-p3+3ML/1,000 μm p-p or 5+5ML/1,000 μm p-p
ResolutionSelectable from 0.05,0.1,0.5 and 1.0 μm
( Set at factory shipping)
Selectable from 0.01,0.05,0.1,0.5 and 1.0 μm
( Set at factory shipping)
Reference pointNone, Center point, Multi-point (40 mm pitch),
Reference mark (standard pitch: 20 mm),
User-selected point (1 mm pitch)
None, Center point,
User-selected point (1 mm pitch)
Power supply voltageDC4.75 - 5.25V(At cable connection end)DC4.75 - 5.25V(At cable connection end)
Consumption current200 mA (at 120 Ω terminal) max.200 mA (at 120 Ω terminal) max.
Imrush current2A max. (When the power supply rise time is 10 ms)2A max. (When the power supply rise time is 10 ms)
Maximum response speed50m/min(Resolution: 0.1 um,
Minimum phase difference: at 100 ns)
200m/min
(User-selected resolution setting)
Vibration resistance150m/s2 (50Hz~3kHz)150m/s2 (50Hz~3kHz)
Impact resistance350m/s2 (11ms)350m/s2 (11ms)
Protective design gradeIP54 (Air purge not included), IP65 (Air purge included)IP54 (Air purge not included), IP65 (Air purge included)
Other protectionsOil lubricant can also be used under severe environmental conditions.Oil lubricant can also be used under severe environmental conditions.
Power supply protectionIn the case of errors such as a reverse-connected power supply or over-voltage,
the internal fuse is cut to protect the power being supplied and wiring.
In the case of errors such as a reverse-connected power supply or over-voltage,
the internal fuse is cut to protect the power being supplied and wiring.
Safety standardsFCC Part15 Subpart B Class A. ICES-003 Class A Digital Device.
EN55011 Gp1 Class A, EN61000-6-2. Safety standards not applicable (60 V DC or less).
FCC Part15 Subpart B Class A. ICES-003 Class A Digital Device.
EN55011 Gp1 Class A, EN61000-6-2. Safety standards not applicable (60 V DC or less).
Operating temperature range( °C)0 ~ +50 °C0 ~ +50 °C
Storage temperature range( °C)-20 ~ +55 °C-20 ~ +55 °C
MassApprox.0.27kg + 1.36kg/mApprox.0.27kg + 1.36kg/m
Slider sliding resistance1N or less1N or less
ModelCH33-**CPCH33-**CE
DescriptionCable with open endCable with open end
Cable length3,5,10,15m3,5,10,15m
MaterialPVCPU
ArmorYESYES

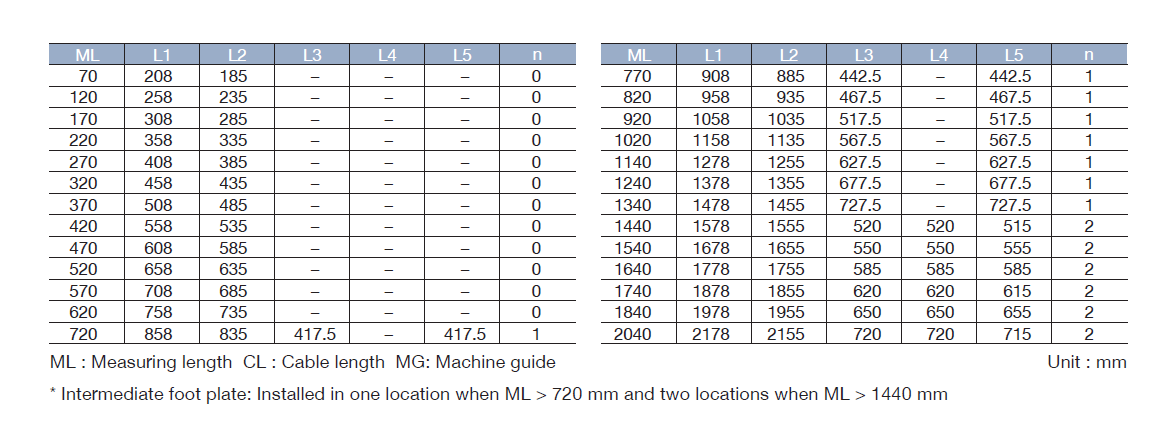

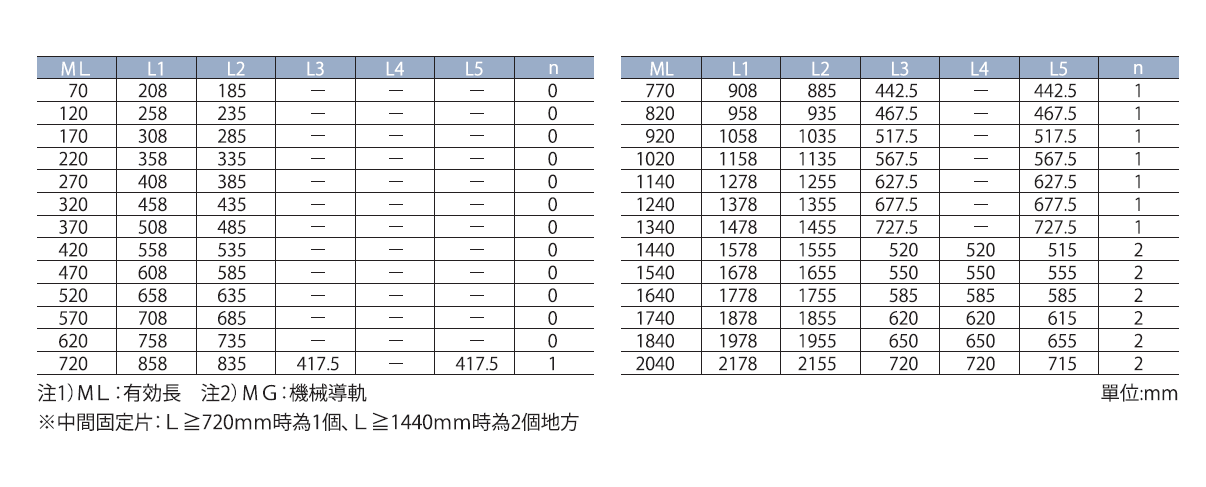

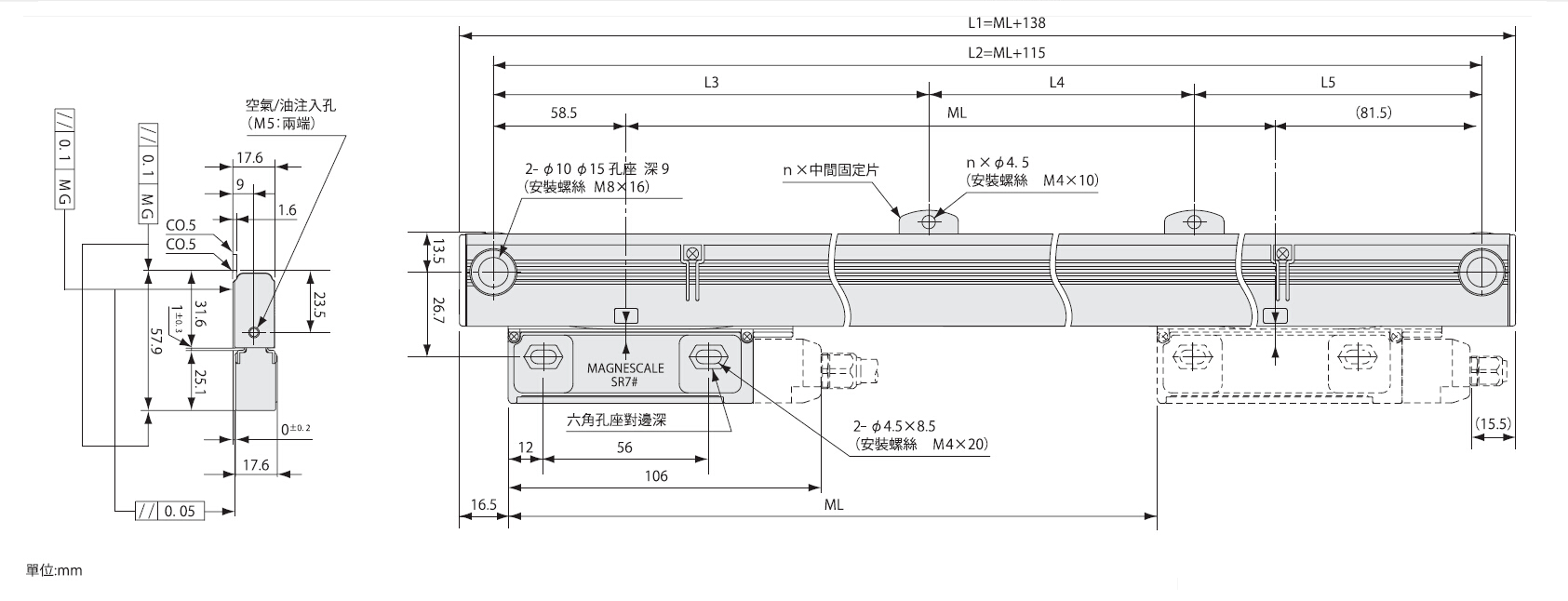

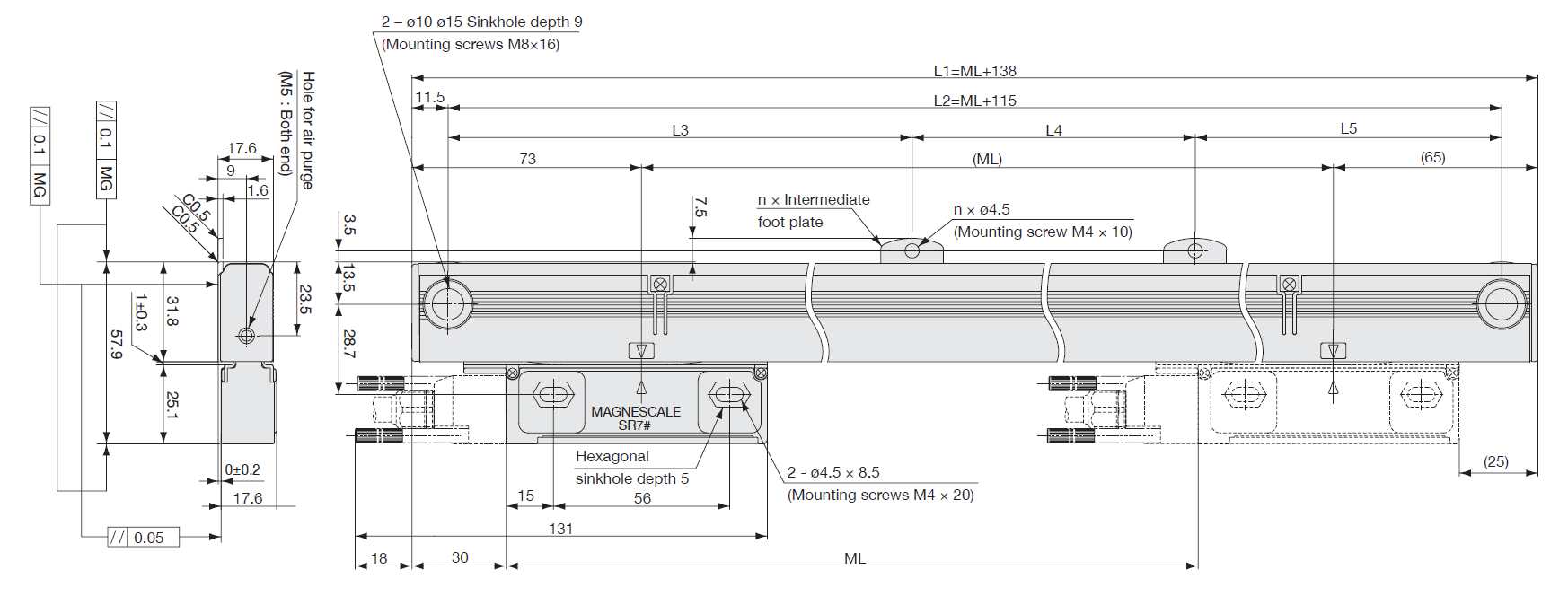

产品尺寸:
