SYLVAC电感测头P5 P10 P25

SYLVAC电感测头P5 P10 P25
产品名称:SYLVAC电感测头P5 P10 P25
所属类别:多功能测头显示器
产品人气:2808
更新日期:2019/3/11 9:01:03
询价

产品介绍

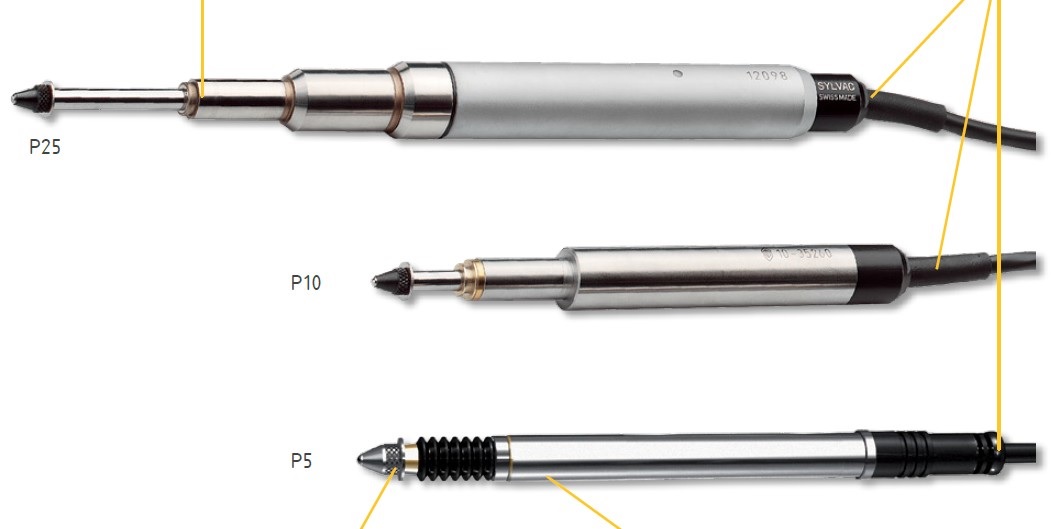

SYLVAC电感测头P5 P10 P25描述

•笔式电容式绝对测量探头

•分辨率0.0001毫米

•测量范围从5毫米到25毫米

•普通轴承或滚珠轴承,一体化真空提升机P5

与所有的Sylvac数字单位兼容

•良好的线性

•大多数类型的可互换电缆




SYLVAC电感测头P5 P10 P25技术参数:

型号 P5  P10  P25
P10  P10S P25  P25S
行程Travel mm 5 10 25
精度Pre-travel mm 0.7 0.5 0.8
误差Max. Error 1) μm 1 1 1.2
分辨率Repeatability μm 0.2 0.2 0.2
重量Moving mass g 3.7 4.1 9.6
测力
标准Standard N 0.60-1.20 0.60-0.80 0.70-1.25 0.60-1.00 0.65-1.4
低Minimum N
---
< 0.10
---
< 0.15
---
低Low N 0.20-0.25 0.20-0.25
---
0.20-0.30
---
高High N 1.00-1.80 0.70-1.50
---
0.70-1.60
---
大Lateral max N 0.7 0.6
---
0.3
---
1) With Master unit. See as well the specifications of the pair Measuring probe/display unit.
Tolerance ± 20%, measuring probe in vertical position, outgoing spindle.

笔式测微计P5 P10 P25订货号:

P5 P10 P25
P5 900.1001 P5BV 900.1005 P10 900.101 P10LLF 900.1014.91 P25 900.1025 P25S 900.1027
P5BL 900.1002 P5L 900.1006 P10LF 900.1010.91
P5V 900.1003 P5BVL 900.1007 P10S 900.1012 P10LS 900.1016
P5B 900.1004 P5LV 900.1008 P10L 900.1014
B = ball bearing / V = Vacuum lifter / L = 90° cable / LF = low force / S = with rubber boot

SYLVAC电感测头P5 P10 P25尺寸:

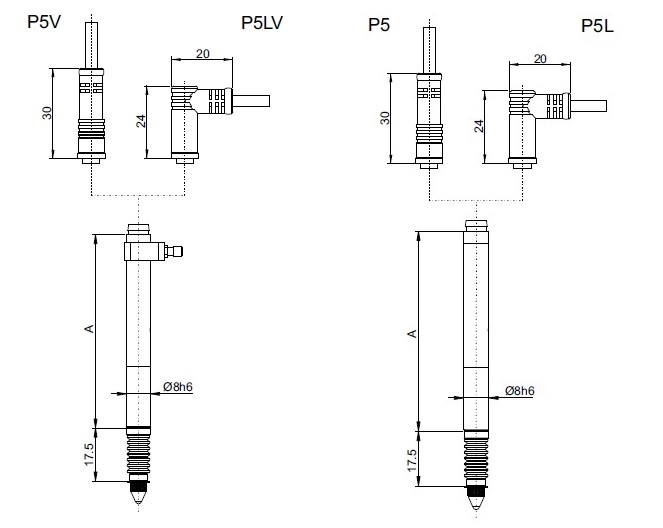

P5尺寸:


P10尺寸:

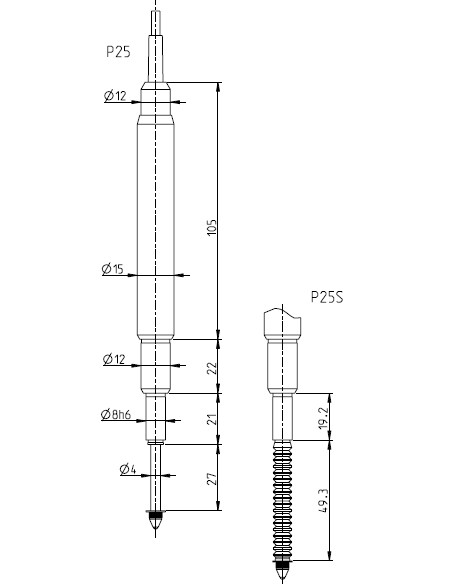

P25尺寸:




SYLVAC电感测头P5 P10 P25标准配置

根据技术规格探针

校准证书

电缆1.5

不锈钢接触点与碳化钨球Ø2毫米(905.2204)


SYLVAC电感测头P5 P10 P25应用:

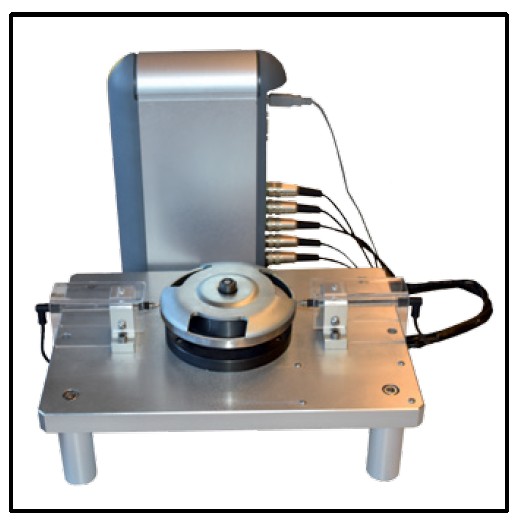

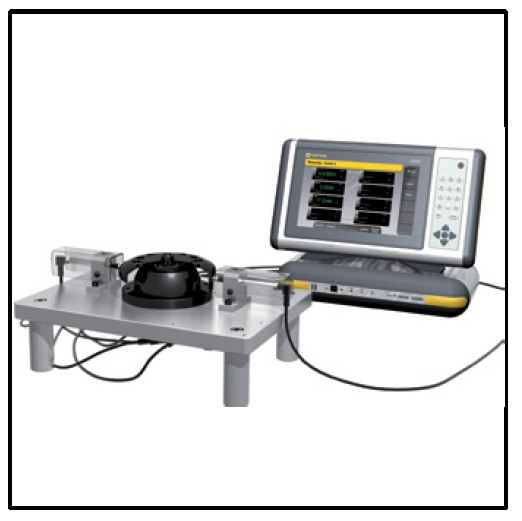

P5 probes connected to a D302 coupled with D300S for OD, concentricity and cylindricity measurements

P5探针连接到D302,外加D300S用于OD、同心度和圆柱度测量

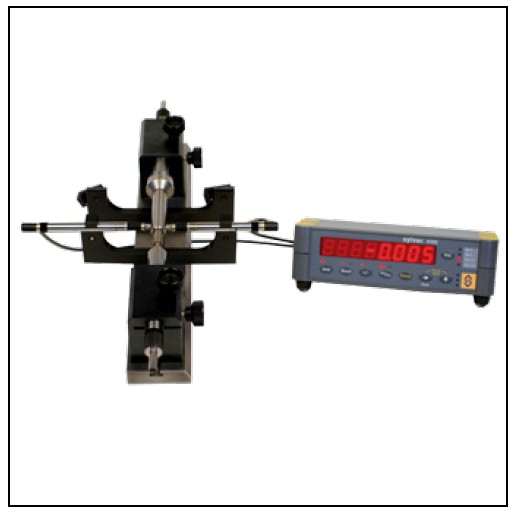

P5 probes connected to a D50S unitmeasuring the external diameter of a shaft

P5与D50S连接测量轴外径


多个组合满足不同高度的测量

Combined probes for the measurement of several heights

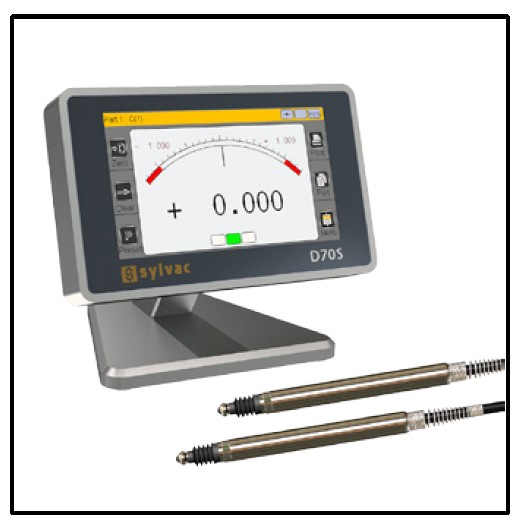

与D70S连接

Capacitive probes connected to a D70S.


与D200S连接应用

Capacitive probes connected to a D200S

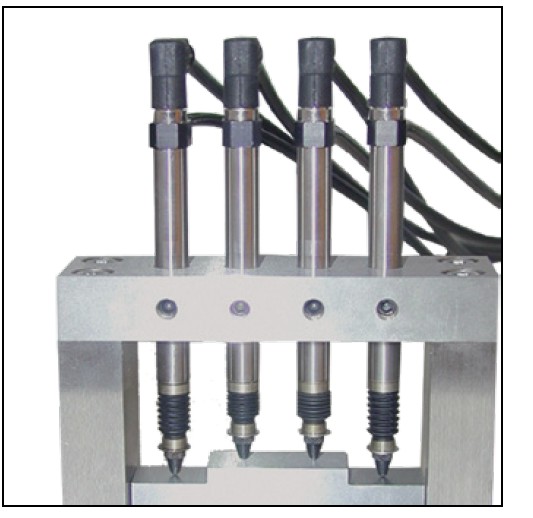

与夹具配套使用

Capacitive probes on a jig

×
